Function

(1) instrument adopts 2.4G ultra high frequency wireless transmission technology, 32-bit CPU, 64mhz clock, 512MB of ram, pure digital push-button operation LCD screen display, digital keys contain multiple shortcut keys, operation is simple and fast; anti magnetic field interference strength 19 Aosite, 5kV antistatic interference.

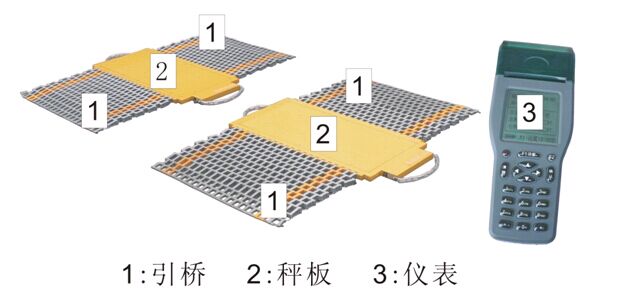

(2) scale and the laser welded and seamless sealing technology multi-point type sensor embedded structure design, high strength waterproof, integrated light pressure resistant plastic mesh approach, volume is small, weight is light, and the scale can be folded, which is convenient to carry.

(3) the whole system shall be of light weight, high pressure and high water resistance, simple operation, and can be carried out all day.

(4) 10000 sets of vehicle detection data can be stored, with query and statistical functions.

(5) software can automatically switch to the weighing mode for unilateral tire number four rows of round, single shaft tire number to eight rows of round number, and one-time weighing axis number more than 40 shaft for high speed special vehicle overload.

(6) support for a single board weighing mode, if a piece of the weighing platform is damaged, the other can be used alone.

Technical parameters

(1) wireless scales: 1. Size: 800X350X22mm II weight: 28KG (single block scale)

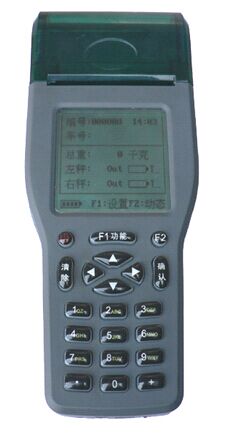

(2) wireless instruments: 1. Dimensions: 210 x 83 x 50mm II: "1.0kg"

(3) weighing range: single scale table: 20T; single axis: 40T; safety overload: 150%

(4) the instrument index value: 2kg, 5kg, 10kg, 20kg, 1kg, 50kg can be adjusted

(5) accuracy: static error: + 5 + 3% per thousand, dynamic error

(6) working temperature: -30 ~ 80, relative humidity: < 90%RH

(7) working power supply: 220V 10%; 6V 10%

(8) AD conversion: 24 bit high speed AD chip, the sampling frequency is greater than 20000 times / sec.

(9) transmission distance: no barrier to transmission of up to 25 meters, a barrier transmission of up to 15 meters or more.

(10) digital wireless transmission and transmission of hardware as one type of connection design, improve the anti-interference ability, provide technical support for the dynamic measurement accuracy of the system.

(12) there is an electronic simulation of the instrument in the shaft type of non shaft type paper, automatic identification of shaft type non manual input;

Voltage monitoring and sound alarm function in taiwan.

(13) instrument embedded micro thermal printer can print time, date, license plate number, serial number, axle load, axle group and gross weight, and limit the rate of data. Adopt wear-resisting standard min interface, easy to connect with computer.

(14) the two block scales are individually calibrated, with 20 point dynamic correction function, which greatly improves the accuracy of the product.
